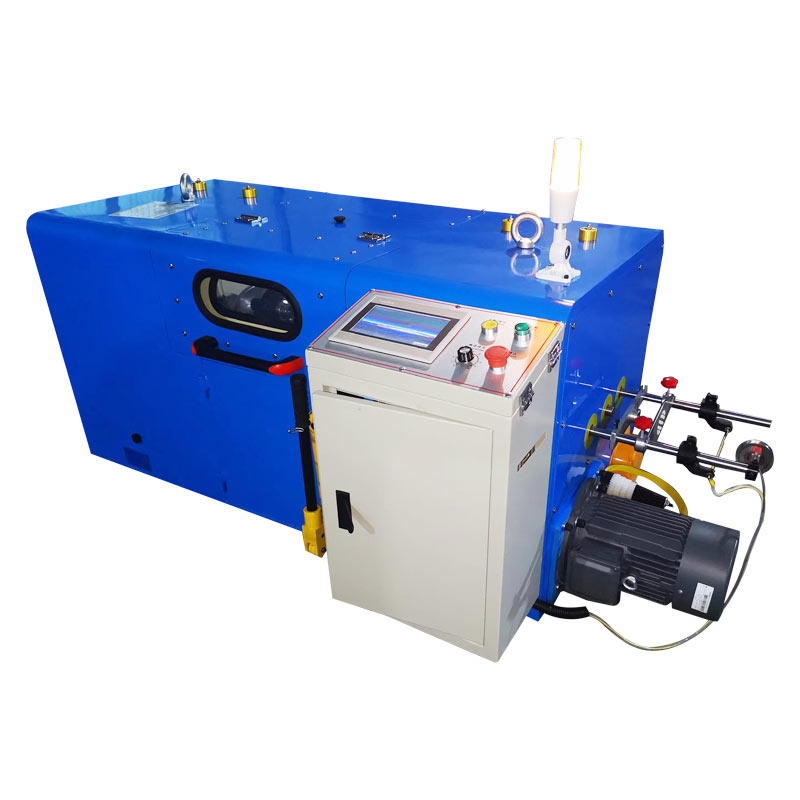

300 Bunching Machine

TECHNICAL SPECIFICATION

Type 300

Driving Speed 3000RPM(6000t/min)

Dia.Per Strand Ф0.025-0.08(mm)

Stranding Sec.Area 0.00344-0.0352(mm²)

Lay Pitch 0.94~17.88(mm)Can make according to customer's requirement

Take-up BObbin Ф300 mm or less

Driving Motor 3HP AC Motor with controlled Inverter

Stranding Direction Optional for right or left

Tranversing Unit Rolling ring drive units.Winding pitch and breadth are adjustable

Brake System Auto braking using the intemal & external short-line of the braker

Bearing FAG or NSK P5

Noise Level About 75D.B

Weight About 900 kgs

Dimension LxWxH(mm)1876×900×920

Coating Customized by client
