Cat 6a Ethernet cables have emerged as a game-changer for high-performance networking in the ever-evolving world of network technology. As businesses and data centers demand faster and more reliable connections, understanding the capabilities of Cat 6a cables becomes crucial. This comprehensive guide will explore the speed, performance, and advantages of Cat 6a Ethernet cables, helping you make informed decisions for your network infrastructure.
Cat 6a, short for Category 6 Augmented, is an advanced Ethernet cable standard for high-speed data transmission. Developed as an improvement over its predecessors, Cat 6a cables offer enhanced performance and reliability for modern networking needs.
Key specifications of Cat 6a include:
· Supports 10 Gigabit Ethernet (10GBase-T)
· Operates at frequencies up to 500 MHz
· Provides a maximum cable length of 100 meters for 10 Gbps transmission
Compared to Cat 5e and Cat 6 cables, Cat 6a significantly improves speed, bandwidth, and resistance to electromagnetic interference.
The standout feature of Cat 6a cables is their impressive speed capabilities. Here's a breakdown of Cat 6a's performance metrics:
· Data Transfer Rate: Cat 6a cables can support data transfer speeds of up to 10 Gbps (gigabits per second), ten times faster than the 1 Gbps speed of standard Cat 5e and Cat 6 cables.
· Frequency Range: Cat 6a operates at frequencies up to 500 MHz, double that of Cat 6 (250 MHz) and five times that of Cat 5e (100 MHz). This higher frequency range allows for increased data throughput and improved signal quality.
· Cable Length: Unlike Cat 6 cables, which can only support 10 Gbps speeds up to 55 meters, Cat 6a maintains its 10 Gbps performance over the full 100-meter channel length. This makes Cat 6a ideal for larger installations and data centers.

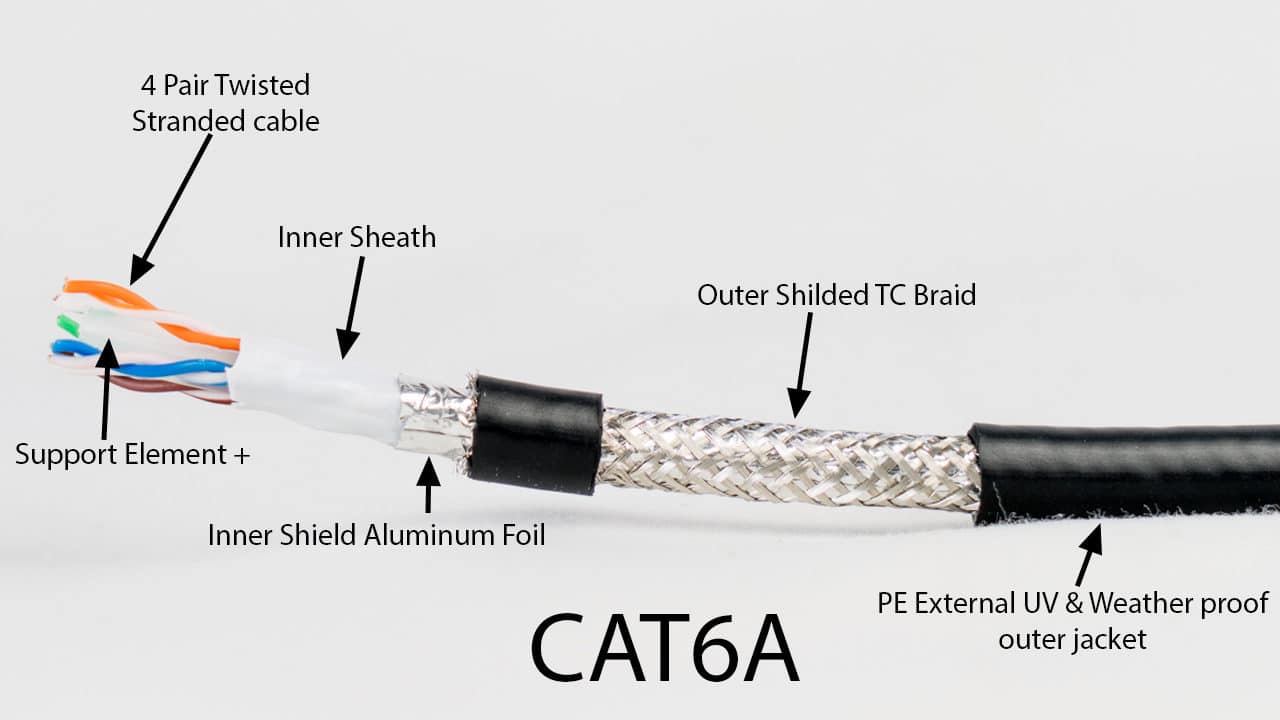

· Alien Crosstalk Reduction: Cat 6a cables are designed with improved shielding and twisting to minimize alien crosstalk (AXT) and interference between adjacent wires. This results in cleaner signal transmission and better overall performance.
The benefits of Cat 6a cables extend beyond just speed. Here are some key advantages:
· Future-Proofing: With its 10 Gbps capability, Cat 6a provides ample bandwidth for current and future networking needs, ensuring your infrastructure remains viable for years.
· Improved Signal Quality: Cat 6a's enhanced shielding and higher frequency range result in cleaner signal transmission, reducing errors and retransmissions.
· Backward Compatibility: Cat 6a cables are compatible with earlier Ethernet standards, allowing for gradual network upgrades without replacing all existing hardware.
· Power over Ethernet (PoE) Support: Cat 6a cables can handle higher power levels for PoE applications, making them suitable for powering devices like security cameras and wireless access points.
· Reduced Latency: Cat 6a's higher bandwidth translates to lower latency, crucial for time-sensitive applications like video streaming and online gaming.
Cat 6a cables find their place in various high-performance networking environments:
· Data Centers: Cat 6a's high speed and low latency make it ideal for data center applications, where massive amounts of data are transferred continuously.
· Enterprise Networks: Large businesses benefit from Cat 6a's ability to handle increased network traffic and support bandwidth-intensive applications.
· Healthcare: In hospitals and medical facilities, Cat 6a supports high-resolution imaging and telemedicine applications that require fast, reliable data transmission.
· Education: Universities and research institutions use Cat 6a to support advanced computing needs and large-scale network deployments.
· Media Production: The entertainment industry relies on Cat 6a to transfer extensive video and audio files in production environments.

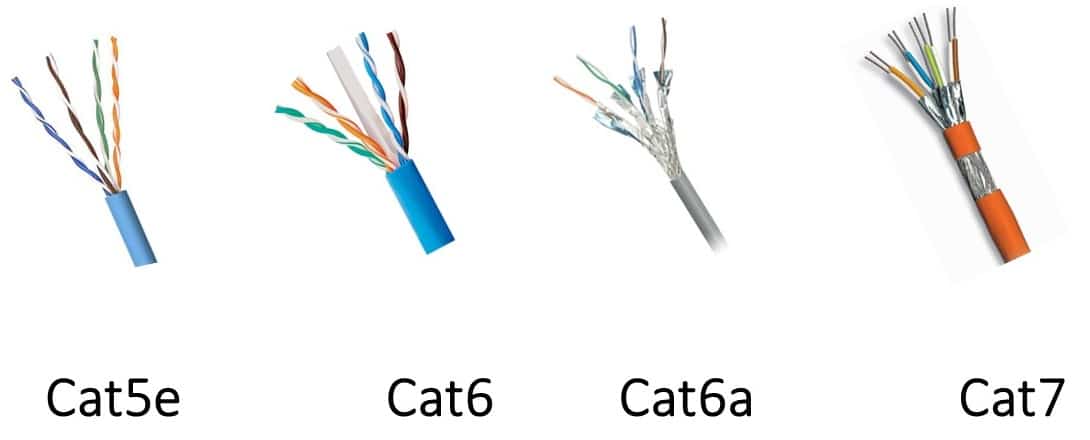

To better understand Cat 6a's position in the Ethernet cable hierarchy, let's compare it to other common categories:
Category | Max Speed | Frequency | Max Length for 10 Gbps |
Cat 5e | 1 Gbps | 100 MHz | Not supported |
Cat 6 | 1 Gbps | 250 MHz | 55 meters |
Cat 6a | 10 Gbps | 500 MHz | 100 meters |
Cat 7 | 10 Gbps | 600 MHz | 100 meters |
While Cat 7 offers slightly higher frequency, Cat 6a provides the best performance, cost, and compatibility balance for most high-speed networking applications.
When installing Cat 6a cables, consider the following:
· Shielding Options:
o UTP (Unshielded Twisted Pair): Suitable for most office environments.
o F/UTP (Foiled Unshielded Twisted Pair): Offers better protection against interference.
o U/FTP (Unshielded Foiled Twisted Pair): Provides excellent shielding for high-interference areas.
· Proper Termination: To maintain cable performance, ensure correct termination. Use high-quality connectors and follow TIA/EIA-568 standards.
· Testing and Certification: Always test Cat 6a installations using appropriate equipment to verify performance meets or exceeds standards.
As network demands continue to grow, new standards are emerging:
· Cat 8: Supports speeds up to 40 Gbps over shorter distances, primarily for data center applications.
· Single Pair Ethernet: Aims to simplify cabling for IoT devices and industrial applications.
Despite these advancements, Cat 6a remains a solid choice for most high-performance networking needs in the foreseeable future.
Cat 6a Ethernet cables offer a compelling combination of speed, performance, and future-proofing for modern networks. With their ability to support 10 Gbps speeds over 100 meters and improved resistance to interference, Cat 6a cables are an excellent choice for businesses and organizations looking to upgrade their network infrastructure.
As a network cable manufacturing machinery supplier, understanding the intricacies of Cat 6a cables is crucial. By leveraging this knowledge, you can better serve your clients and provide solutions that meet the growing demands of high-speed networking.
Q: What is the maximum speed of Cat 6a?
A: Cat 6a supports speeds up to 10 Gbps.
Q: How far can Cat 6a run at 10 Gbps?
A: Cat 6a can maintain 10 Gbps speeds up to 100 meters.
Q: Is Cat 6a worth the investment?
A: Yes, for organizations requiring high-speed, future-proof networking, Cat 6a offers excellent performance and longevity.
Q: Can Cat 6a be used for PoE applications?
A: Cat 6a is well-suited for Power over Ethernet applications, supporting higher power levels than previous categories.
Implementing Cat 6a in your network or recommending it to your clients ensures a robust, high-performance infrastructure that meets current and future networking demands.
