Use

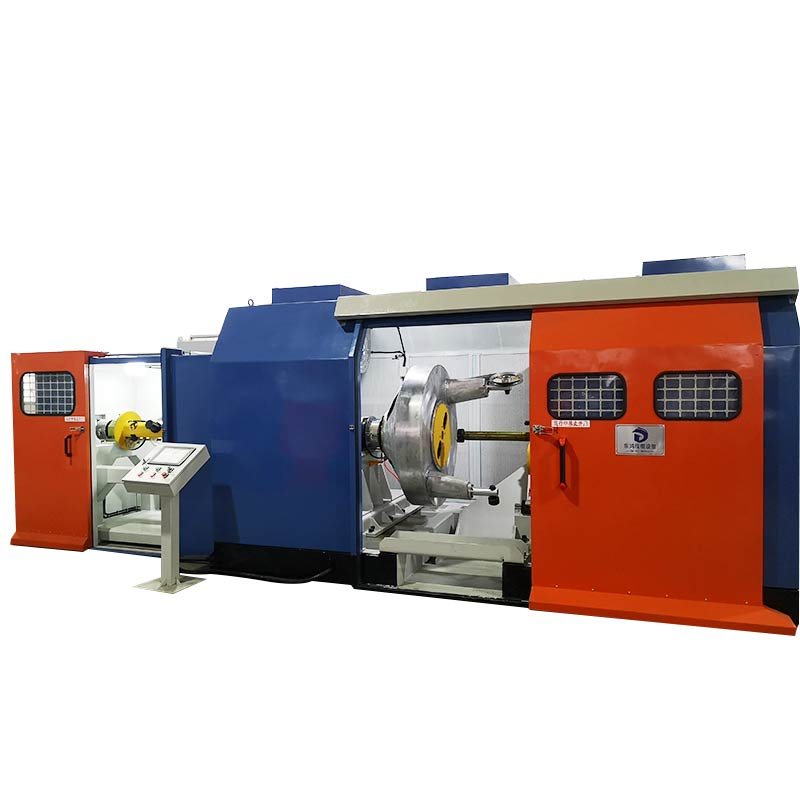

800/1000 cantilever single-twist cabling machine is mainly used for twisted pair cabling of FTP5EFTP6FTP6ACat7 products, and also used for various control cables, plastic insulation and other special core cabling purposes;
TECHNICAL SPECIFICATION
| Machine Model | ∅800 | ∅1000 |
| Dia.range of twisted pair | ∅1.7~∅2.5mm | |
| Max.O.D of finished cable | 10.0mm | |
| Cable pitch range | 50-300 mm (electronic pitch) | |
| Max.speed | 800 rpm | 600 rpm |
| Cantilever main motor | 30 kW | 45 kW |
| Take up motor | 30 kW | 45 kW |
| Winding motor | 1.5 kW(AC reduction motor) | |
| Dia.of traction wheel | 320mm | |
| Max.line speed | 150m/min | |
| Traction motor | 7.5kW | |
| Stranding direction | S/Z | |
| Spec.of pay off reel | ∅630×475×56mm, | compatible with ∅500×300×56mm |
| Spec.of take up reel | ∅800×600×80mm | ∅1000×750×127mm, compatib with ∅800×600×80m |
