TECHNICAL SPECIFICATION

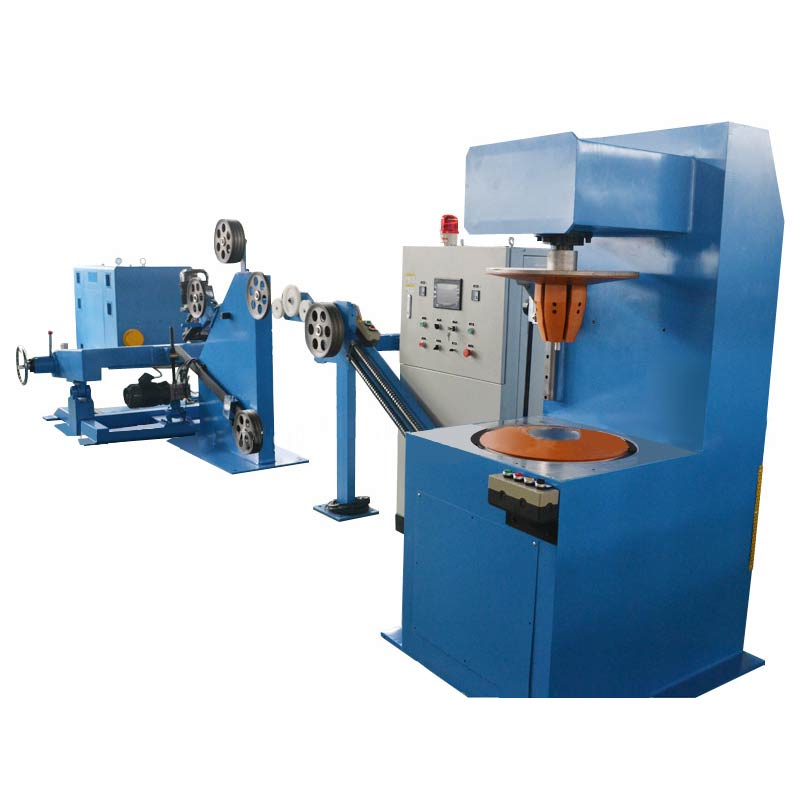

1.Coiling machine work with active pay-off rack to finish coiling of data cable;
2.Servo motor for traversing,PLC programmed control,crossover network distributing.
3.Reserved an outlet hole for coiling,to fulfil no tortuousness and no knot for paying-off
4.Standard packing size is 305 m(1000ft)/spool;
5.According to coiling core size to order packing box service is available.
| Description | Specification |
| Max.rotate speed | 300rpm |
| Pay off power | 5.5Kw |
| Pay off tension | The swing type adjustable balancer |
| Pay-off bobbin lifting | Electrodynamic type |
| Electrical control of pay off | Converter |
| Operation type | Touch screen setting |
| Traversing power | 1.5kw Servo motor |
| Traversing type | Straight line rail type |
| Meter counting type | Electro-optical sensor type |
| Power transmission | High strength synchronous belt |
| Main motor power | 3 kw DC motor |
| Electrical control | PLC Programmed control |
| Voltage | ~3×380(±5%)v |
| Power frequency | 50(±2%)Hz |
| Figure dimensions | 7.5*2*1.9m |
