Have you ever wondered about the intricate process of manufacturing different types of cables? Specifically, how does the manufacturing of coaxial cables differ from that of general lines? This blog post will delve into the manufacturing steps, machinery, and techniques used in producing coaxial cables and contrast them with those used for available pipes. Let's explore the journey from wire drawing to insulation and uncover the fascinating differences between these two cable types.
To start, let's understand the basics. Coaxial and general cables serve distinct purposes and are utilized in various industries. Coaxial cables are commonly used in high-frequency signal transmissions, such as telecommunications, cable television, and computer networks. On the other hand, general lines encompass a broader range of applications, including power transmission, data communication, and electronic equipment interconnection.
Both coaxial and general cables undergo a similar initial step regarding wire drawing. Wire drawing involves pulling metal wire through a series of dies to reduce its diameter and improve uniformity. This process ensures the wire meets the required specifications for conductivity and strength.
However, the manufacturing processes diverge significantly after wire drawing. Let's explore the contrasting steps involved in producing coaxial and general cables.
Coaxial cables have multiple layers that provide shielding, insulation, and signal transmission. The manufacturing process of coaxial cables typically involves the following steps:
1. Conductor Manufacturing: The innermost layer of a coaxial cable is the conductor, which carries the electrical signal. It is commonly made of copper or aluminum and undergoes stranding or solid wire manufacturing processes.
2. Insulation Application: Once the conductor is formed, it is coated with a layer of insulation material, such as polyethylene (PE) or foamed polyethylene (FPE). The insulation provides electrical separation and protection to the signal-carrying conductor.
3. Shielding: To minimize electromagnetic interference (EMI), coaxial cables incorporate shielding layers. This is achieved by applying a metallic shield, typically made of aluminum foil or copper braid, around the insulation layer.
4. Jacketing: The outermost layer of a coaxial cable is the jacket, which provides mechanical protection and insulation from environmental factors. The jacket is typically made of materials like PVC (polyvinyl chloride) or LSZH (low smoke zero halogens).
Throughout the manufacturing process, specialized machinery ensures precision and efficiency. Stranding machine, Extrusion Machine, shielding applicators, and jacketing equipment are examples of coaxial cable production machinery. These machines are designed to handle the unique requirements of coaxial cables and deliver consistent quality.
In contrast to coaxial cables, general cables encompass various cable types, each designed for specific applications. The manufacturing process for available lines generally includes the following steps:
1. Conductor Manufacturing: Similar to coaxial cables, general cables start with the production of conductors. The conductors can be solid or stranded, depending on the cable type and intended use.
2. Insulation Application: Once the conductors are manufactured, they are insulated using various materials, such as PVC, XLPE (cross-linked polyethylene), or rubber. The insulation provides electrical insulation and protection against external factors.
3. Twisting or Pairing: Some general cables, such as twisted pair cables used in data communication, undergo twisting or pairing of individually insulated conductors. This twisting process helps reduce crosstalk between adjacent wires and improves signal integrity.
4. Shielding (If Required): Certain general cables may incorporate shielding layers to mitigate EMI. Shielding can be achieved by applying aluminum foil, copper tape, or braided shields, depending on the cable's requirements.
5. Jacketing: Finally, a protective outer jacket is applied to the cable, providing mechanical strength, abrasion resistance, and environmental protection. The jacket material can vary depending on the cable's intended application.

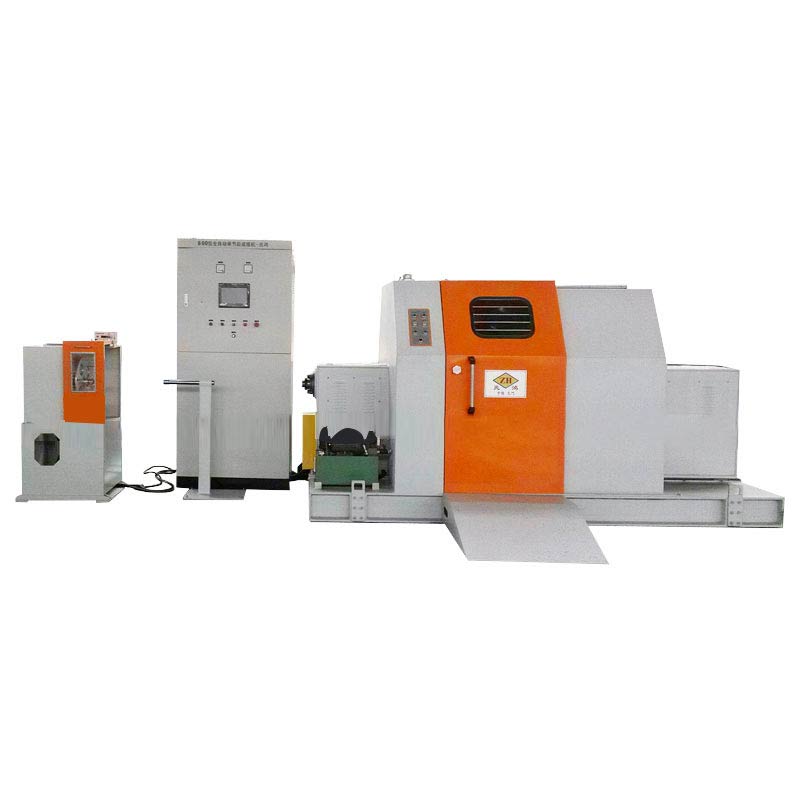

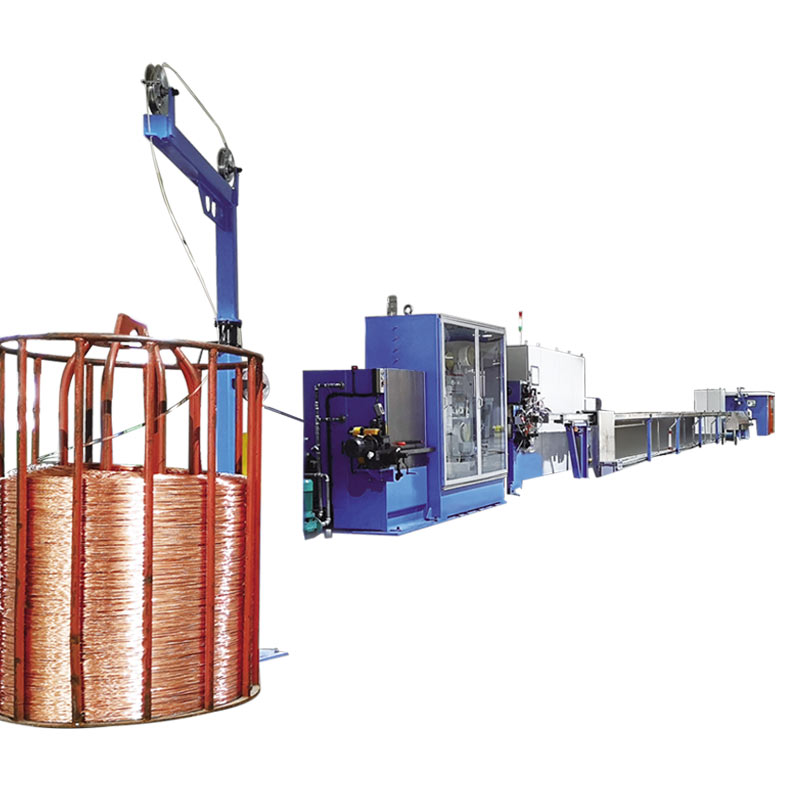

The machinery used in general cable manufacturing varies depending on the cable type and complexity.Wire drawing machines, Extrusion Machine, Twisters Machine, shielding applicators, and jacketing equipment are among the standard devices used to produce general cables.
In conclusion, the manufacturing processes for coaxial and general cables exhibit notable differences in steps, materials used, and machinery employed. Coaxial cables are characterized by their layered structure, including a conductor, insulation, shielding, and jacketing. On the other hand, general lines encompass a broader range of cable types, each tailored to specific applications.
Understanding these contrasting manufacturing steps and the specialized machinery is crucial for producing high-quality cables. Manufacturers can ensure optimal performance, reliability, and durability of the wires they make by comprehending the unique requirements and intricacies of coaxial and general cable production.
