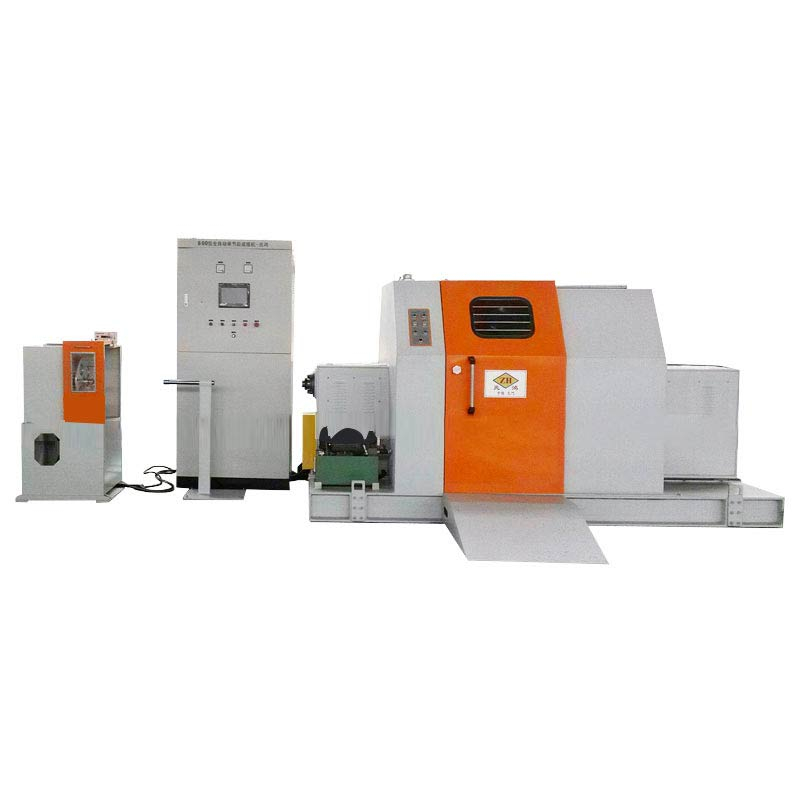

1000 single twist cabling machine (CAT5-6)

1.Main machine work with active pay off and servo-driving traction,
complete four pairs core wire twisting with framework."
2.Pitch stable,steady tension,main machine totally closed for protectionhigh speed and safety.

Quantity:
Availability:





Inquire

Product Description

TECHNICAL SPECIFICATION

Description	Specification
Max.rotate speed	720rpm
Strand pitch range	80~400mm
Pitch replacement	Touch screen setting
Twisting direction	S&Z
Traversing type	Sliding rail type
Bobbin lifting	Electrodynamic type
Break type	Pneumatic disc
Power transmission	High-strength synchronous belt
Take-up tension	DC moment
Main motor power	15kw+11kw
Electrical control	PLC+PLC+DC Controlle
Voltage	~3×380(±5%)V
Power frequency	50(±2%)Hz
Figure dimensions	335016701725mm
