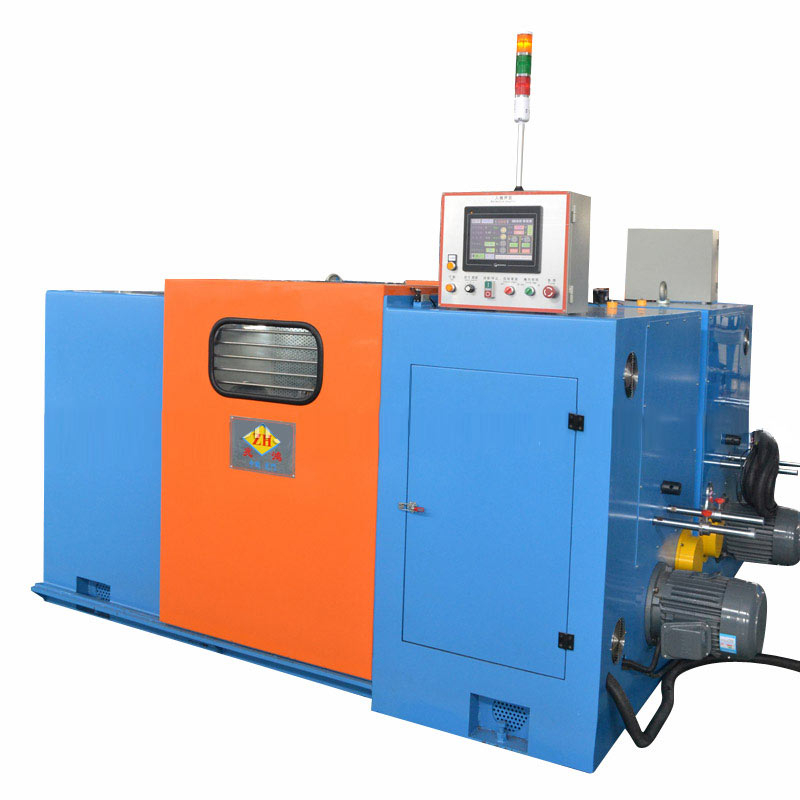

500/630 Pair twist+Vertical dual head back twisting pay off machine

1.Pair twisting machine equip with pay off,complete CAT5,5e,CAT 6 network wire to twisting in pair
2.Active pay off and pair twisting machine feedback linkaged by tension swing arm;
3.Back-twisting pay-off and twisting machine are setting back-twisting ratio by PLC,
synchronous linkage control;"
4.Total closed type protective equipment,high speed and safety.

Quantity:
Availability:





Inquire

Product Description

TECHNICAL SPECIFICATION

1. The twisting machine is used in conjunction with the pay-off to complete the twisting of the two-core wires of the five (5) and six types of network cables into pairs;

2. The active pay-off and the twisting machine are linked through the feedback of the tension swing arm;

3. The back-twist pay-off and the twisting machine are set by PLC to set the back-twist rate, and the synchronous linkage control;

4. The equipment is fully enclosed protection, high speed and safety.

TECHNICAL

Max.rotate speed	2200rpm	Max.rotate speed	1050rpm
Range of pitch	7-50mm	Backtwisting ratio	recommend30-35%
Pitchreplacement	Mechanical orElectronic type	Pay off tension	Adjustable
Twisting direction	S&Z	Backtwisting direction	S&Z
Traversing type	Rolling ring type	Bobbin lifting	Motor-driven
Bobbin lifting	Motor-driven	Main motor power	3.7kw
Main motor power	5.5kw	Pay off motor power	0.55*2tower
Electrical control	380V50 Hz PLC+ PLC+Converter	Electrical control	380V50 Hz PLC+ PLC+Converter
Figure dimension	305012001500mm	Figure dimension	310014002150mm
