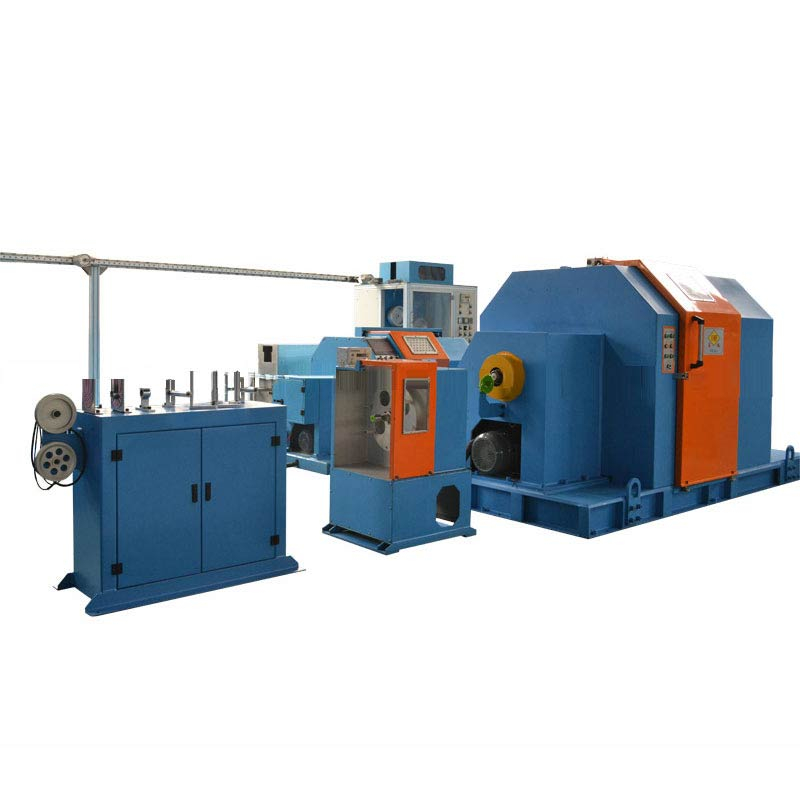

1. The cabling host is matched with the active pay-off frame and the servo-driven front tractor to complete the four pairs of core wires.
Stranded into a cable with a skeleton;
2. The pitch of the cable is stable, the tension is stable, the main engine is fully enclosed protection, high-speed and safe.
1.Main machine work with active pay off and servo-driving traction,
complete four pairs core wire twisting with framework.
2.Pitch stable,steady tension,main machine totally closed for protectionhigh speed and safety.
| Description | Specification |
| Max.rotate speed | 720rpm |
| Strand pitch range | 80~400mm |
| Pitch replacement | Touch screen setting |
| Twisting direction | S&Z |
| Traversing type | Sliding rail type |
| Bobbin lifting | Electrodynamic type |
| Break type | Pneumatic disc |
| Power transmission | High-strength synchronous belt |
| Take-up tension | DC moment |
| Main motor power | 15kw+11kw |
| Electrical control | PLC+PLC+DC Controlle |
| Voltage | ~3×380(±5%)V |
| Power frequency | 50(±2%)Hz |
| Figure dimensions | 3350*1670*1725mm |
