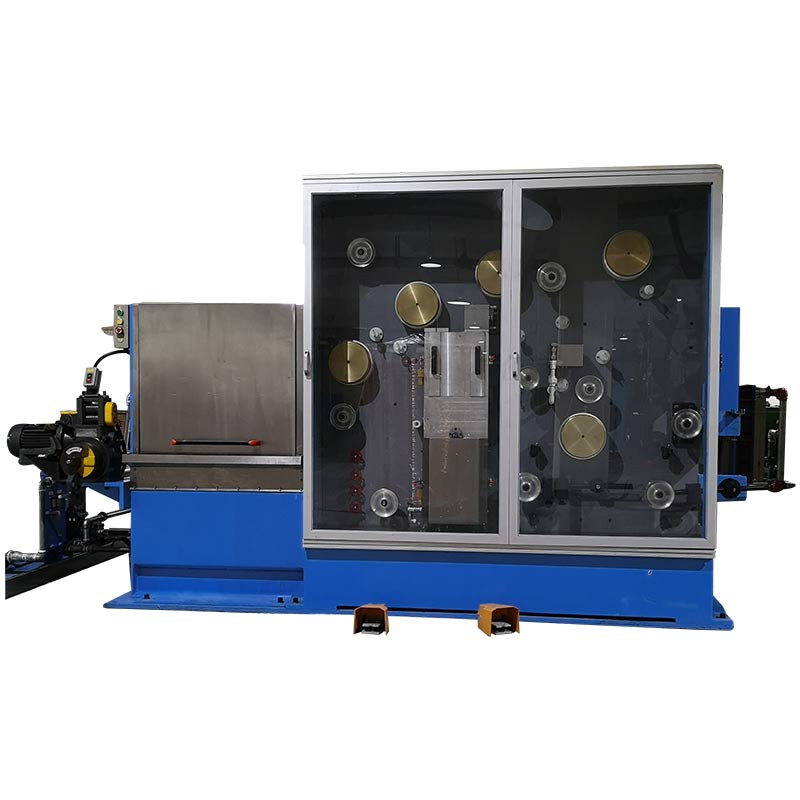

Composition of equipment：
It consists of devices for such processes as wire drawing,annealing,pre-heating,insulation extruding,auto take-up,online outer diameter testing and eccentricity inspection.
Use：
DHCL-17Type series line is mainly used forCAT5E、CAT6、CAT6Aand other single-line production of high-end data cables;

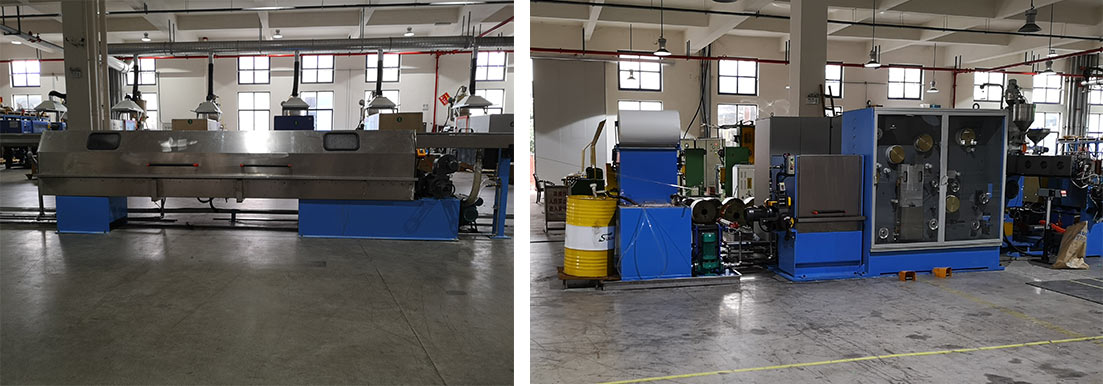

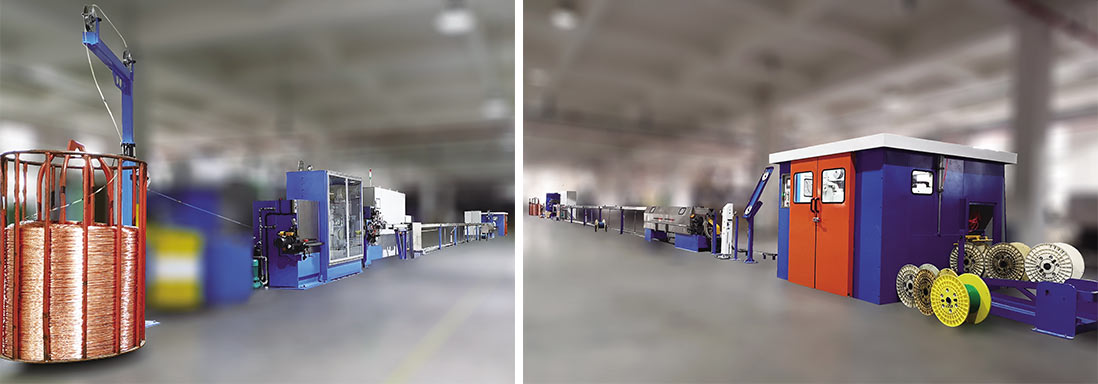

Production line composition：
Drawing, annealing, preheating, insulation extrusion, automatic take-up, online outer diameter, eccentricity detection and other equipment.
TECHNICAL SPECIFICATION
| production line | Extrusion Line |
| Inlet dia. | 2.6-3.0mm soft copper wire |
| Outlet dia. | 0.40-0.8mm |
| Outer dia.deviation | ±0.001mm |
| Ovality of copper wire | ±0.001mm |
| Elongation of copper wire | 18-30% |
| Outer dia.deviation of insulated single wire | within±0.005 mm average value |
| Eccentricity | ≤0.007mm |
| Max.design speed | 1800 m/min |
| Production line speed | 1500 m/min |
| Take up reel size | O.D.500mm×Width300mm×Shaft dia.56mm |
| Total power | about160kW |
| Center height of production line | 1000mm |
| Outline dimension of production line | (L×W×H)41000×3200×2600 |
