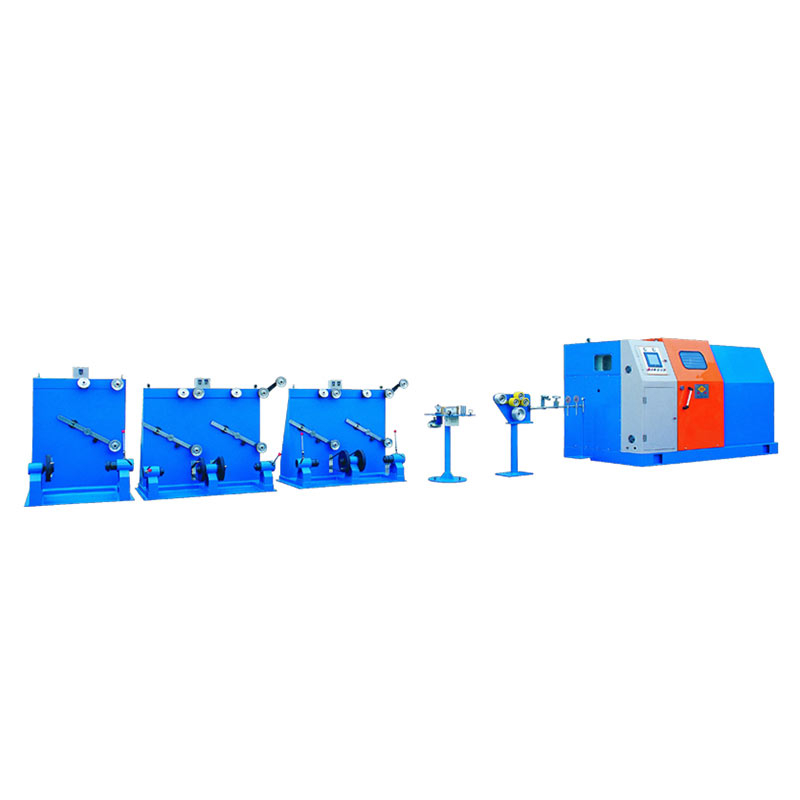

800 Double Twist Cabling Machine

1.Cabling main machine work with active pay-off rack,complete four pair corelines twisting;
2.Pitch stable,total closed type protective equipment,high speed and safety.

Quantity:
Availability:





Inquire

Product Description

TECHNICAL SPECIFICATION

Description	Specification
Max.rotate speed	650rpm
Strand pitch range	50~200mm
Pitch replacement mode	Mechanical or Electronic
Stranding direction	S&Z
Traversing type	Rolling ring traverse
Bobbin lifting	Electric type
Break type	Pneumatic disc
Power transmission	High-strength synchronous belt
Take-up tension	Magnetic tension
Main motor power	11kw
Electrical control	PLC+Frequency converter
Voltage	~3×380(±5%)V
Power frequency	50(±2%)Hz
Figure dimensions	380017001950mm
